Kiln Inspection Kit & Kiln Alignment Tool
Order the MMD — modular kiln inspection kits for cement kiln circumference, eccentricity, and deflection measurement on running kilns. Request a quote and we will reply with pricing.
MMD Circumferential
Measures the circumference and diameter of kiln shells, tyres, and support rollers with the encoder wheel. Upgradeable to MMD Advanced or MMD Combo on request.
- MMD Box
- Measuring Wheel
- Trigger Sensor
- Silicon Magnet Flag
- Battery Charger
- Battery Pack
- USB Cable
- 19VDC Adapter
- Magnet Holder with Cables

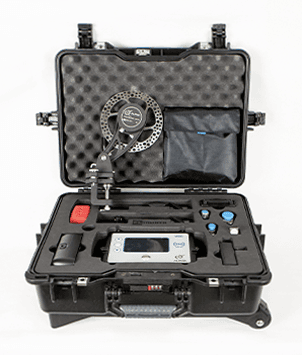

MMD Advanced
Includes the circumferential kit plus inductive-sensor measurement of tyre axial runout, support roller shaft deflection, and girth gear axial runout and radial eccentricity. Upgradeable to MMD Combo.
- MMD Box
- Measuring Wheel
- Trigger Sensor
- Silicon Magnet Flag
- Inductive Sensor 0.10mm
- Inductive Sensor 0.20mm
- Inductive Sensor 0.40mm
- Inductive Sensor 2.5mm
- Battery Charger
- Battery Pack
- USB Cable
- 19VDC Adapter
- 2x Magnet Holder with Cables

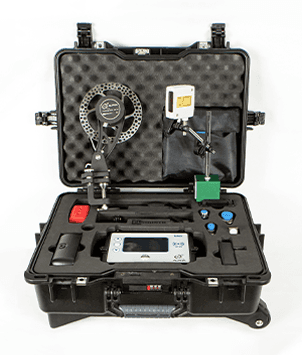

MMD Combo
Includes the same measurement scope as MMD Advanced, with a laser distance sensor option for hard-to-reach points and complete alignment analysis.
- MMD Box
- Measuring Wheel
- Trigger Sensor
- Silicon Magnet Flag
- Mini Silicon Magnet Flag
- Distometer
- Inductive Sensor 0.10mm
- Inductive Sensor 0.20mm
- Inductive Sensor 0.40mm
- Inductive Sensor 2.5mm
- Battery Charger
- Battery Pack
- USB Cable
- 19VDC Adapter
- 2x Magnet Holder with Cables
Your selection
No products selected yet.
Request form
Technical Specifications
| Measurement Range (Inductive) | 0.10 mm – 2.5 mm |
| Accuracy | ±0.01 mm |
| Operating Temperature | -20°C to +80°C |
| Connectivity | USB |
| Power Supply | Rechargeable battery pack + 19 VDC adapter |
| Display | TFT LCD |
| IP Rating | IP65 |
| Certification | CE, ISO 9001:2015 |
